SonTek-RS5

Want to know what the discharge data collection buzz is about - you’re at the right place! The SonTek-RS5 is the world’s most compact and robust ADCP for collecting river, stream, and canal discharge data. The RS5 is small yet powerful. When paired with the custom-designed HydroBoard II Micro and SonTek-RTK, you will be ready to quickly collect the highest quality water velocity and flow measurement possible regardless of where your environmental water monitoring takes you.

• Overview

  Packed with All the Features, You Expect
  The SonTek-RS5 comes loaded with advanced data collection capabilities, high-precision data quality, and flexible deployment options customers have grown used to with SonTek ADCPs over the years.



  • Vertical Acoustic Beam: Superior channel definition for the most accurate cross-sectional area for discharge applications. Measures the depth directly under the system and extends maximum discharge depth if bottom-tracking is out of range. 360º compass and two-axis tilt sensor
  • SmartPulse+®: An intelligent algorithm utilizing Pulse-coherent and Broadband acoustic profiling that automatically adjusts based on conditions—reliable bottom tracking and velocity profiling in water depths shallower than ever. Visualize velocity data like never before with cell sizes down to 2.5 cm.
  • 360º compass and two-axis tilt sensor: Reports vessel heading and magnetic error and compensates for motion due to surface conditions. The tilt sensor uses pitch and roll to correct depth and velocities.
  • RTK GPS (Option): Ultra-precise positioning as an alternative to bottom tracking in moving beds or other difficult situations. Geolocate each sample (or ensemble) during measurement. Corrections are sent from the SonTek RTK base station or a local NTRIP.

  • DGNSS (Option): Integrated DGNSS smart antenna for position as a backup or alternative to bottom tracking in moving bed or other challenging conditions.



• Specifications

  Water Velocity Profiling
  Profiling Range	0.1-6 m (*1)
  Velocity Range	±5 m/s
  Accuracy	1% ±0.002 m/s
  Resolution	0.001 m/s
  Number of Cells	Up to 128
  Cell Size	2.5-30 cm
  Data Output Rate	1.0 Hz



  Bottom Tracking
  Depth Range	0.1-6 m (*1)
  Accuracy (*2)	1% ± 0.002 m/s
  Resolution	0.001 m/s



  Depth Measurement
  Range	0.1-6 m (*1)
  Accuracy	1% ± 0.005 m



  Sensors
  Temperature Sensors	Resolution: ±0.01°C Accuracy: ±0.5°C
  Compass/Tilt Sensor	Range: ±180° Pitch/Roll, 0-360° Heading Heading Accuracy: ±2° Pitch/Roll Accuracy: ±1°



  Transducers
  Total Number	Five, 3.0 Mhz
  Beam Angle	3°
  Bandwidth	25%



  Battery Characteristics
  Input Voltage	3.3-4.2 VDC
  Power Source - Li-Ion	1x size 18650, Tenergy, Type 30016-04, 3.7Vdc, 2600mAh
  Battery Life - 1 x size 18650	Seven hours of continuous use, typical settings (*3)
  Power Consumption	1.0 W (Average)
  Dimensions	19.2 mm x 69.7 mm
  RTK Rover Battery Life 1 x size 18650	5 hours continuous use, typical settings
  RTK Base Station 1 x size 18650	14 hours of continuous use, typical settings



  Communications
  Radio Protocol	Bluetooth Low Energy (BLE5)
  Range	100 m
  Bluetooth Compliance	FCC Part 15, FCC ID: XPYNINAB30 ISED Certification: 8595A-NINAB30



  Environmental
  Operation Temperature	-20° to 70°C (-4°F to 158°F)
  Storage Temperature	20° to 70°C (-4°F to 158°F)
  Storage with Battery Temperature	-20° to 45°C (-4°F to 113°F)



  RS5 Physical Properties
  Dimensions - TB-Micro	80 cm (31.5”) x 46.5 (18”) cm x 15 cm (6”)
  Weight in Air - TB-Micro	4.2 kg (9.3 lbs)
  Dimensions - RS5 Unit	24 cm (9.5”) x 5 cm (2.2”)
  Weight in Air - RS5 Unit	0.45 kg (1.0 lbs)
  Weight in Water - RS5 Unit	0.15 kg (0.33 lbs)
  Waterproof Rating	IP-68 with connectors in use or capped



  DGNSS
  Horizontal RMS	SBAS (WAAS): <0.3 m (0.98 ft)
  2DRMS	SBAS (WAAS): <0.6 m (1.96 ft)
  Frequency	Multi-frequency, multi-constellation
  GNS3M Atlas Subscription	Activate through manufacturer's app



  SonTek-RTK
  Horizontal Accuracy	(Quality 4) < 0.02 m
  Vertical Accuracy	(Quality 4) < 0.04 m
  Frequency	L1C/A, L2C, Multi-GNSS
  Base-to-Rover Range	250 m Line of sight




  *Additional notes
  ¹ Maximum range will vary with environmental conditions.
  ² Bottom velocity accuracy.
  ³ When Using provided SonTek USB radio with antenna.

• Accessories



  SonTek-RS5 Power Supply

  Power Supply



  SonTek-RS5 Bluetooth USB Radio

  Bluetooth USB Radio

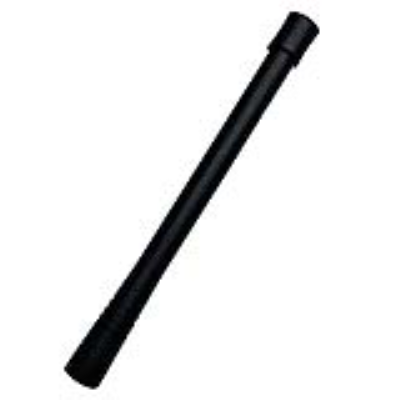

  SonTek-RS5 Antenna

  2.4-GHz antenna (2 dBi)



  SonTek-RS5 Battery Charger

  Battery Charger



  SonTek-RS5 GNSS Antenna Interface Cable

  Antenna Interface Cable



  SonTek-RS5 Radio Antenna Extension Cable

  Extension Cable



  SonTek-RS5 Rechargeable Battery

  Rechargeable Li-Ion Batteries



  SonTek-RS5 RTK Kit

  Upgrade Kit



  SonTek HydroBoard II Micro

  Micro Board



  SonTek HydroBoard II Micro Case

  Carrying Case

• Software

  RSQ: Visualize and Process Data Like Never Before!

   RSQ is a modern and user-friendly software interface. One measurement file includes all the data and metadata you need for each measurement. Export data to formats for Excel, Matlab, Google Earth, Kisters, and AGILA. Do more with less time utilizing improved site templates. Experiment, learn, or teach in the office or conference room as though you were in the field with the option to playback recorded files simulating live data collection. Flexibility is key with RS5.

  WITH RSQ, YOU CAN:

  • Collect both moving boat or stationary measurements
  • Connect to Network RTK (NTRIP) within the network range
  • Use GNSS to calculate the distance between stations for stationary measurements
  • Run and apply Extrap (USGS) to both moving boat and stationary measurements
  • Sub-section moving boat transects and recalculate discharge
  • Choose beam switching (3-beam solution) when one beam shows interference
  • Process *.riv/*.rivr files from SonTek’s M9 or S5
  • Save data on a PC, external drive, or network
  • Custom file naming option
  • Select between GNSS or built-in magnetic compass for heading
